Logic Machine Forum › LogicMachine eco-system › Gateway v
ArtNet packet UDP

Threaded Mode
ArtNet packet UDP
Jayce Offline
Member
Posts: 112
Threads: 39
Joined: Jul 2017
Reputation: 1
#1
21.08.2018, 11:46
Hello, I'm trying to control LED matrix wall through knx. I have it setup to ArtNET and I need to send an UDP packet to IP address with following HEX:


41 72 74 2d 4e 65 74 00 00 50 00 0e 01 00 0e 00 02 00 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

and this port: 6454

Could you please help me with this?
Find
Reply
admin Offline
Administrator
Posts: 7758
Threads: 42
Joined: Jun 2015
Reputation: 447
#2
21.08.2018, 11:59
See examples here:
https://forum.logicmachine.net/showthread.php?tid=1391

You need to change universe number to 0x0E.
Find
Reply
Jayce Offline
Member
Posts: 112
Threads: 39
Joined: Jul 2017
Reputation: 1
#3
21.08.2018, 12:10
Thank you very much, I'm still a bit confused where to put the HEX and the port.
Find
Reply
admin Offline
Administrator
Posts: 7758
Threads: 42
Joined: Jun 2015
Reputation: 447
#4
21.08.2018, 13:10
You don't need to put hex anywhere. Script generates valid ArtNet data packet and sends it to port 6454 (0x1936). You need to set correct IP, universe number and provide array of values. There's also an example with direct mapping to objects.
Find
Reply
Jayce Offline
Member
Posts: 112
Threads: 39
Joined: Jul 2017
Reputation: 1
#5
21.08.2018, 13:22
All right, I understand. Thank you once again.
Find
Reply
Jayce Offline
Member
Posts: 112
Threads: 39
Joined: Jul 2017
Reputation: 1
#6
22.08.2018, 09:20 (This post was last modified: 22.08.2018, 09:21 by Jayce.)
I wanted to test this, but since the LED matrix wall isn't physically installed yet, I tried downloading software called "The ArtNetominator" which can recieve ArtNET packets. Then I modified the script accordingly:

Code:
ip = '192.168.1.43' --DHCP ip address of my PC
universe = 0x0E --14 as you said
data = '255' --don't know what to put here
artnet_dmx(ip, 0, 0, universe, { data })

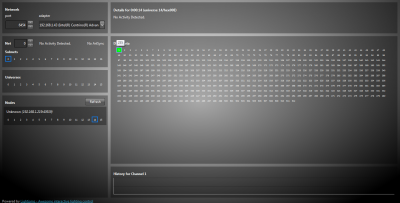

After that I tried running the script which sent a packet that I successfully got in the software (screenshot 1).
The technician that will be installing the LED matrix sent me mail with an IP, default port (6454) and HEX. He said that I need to somehow send packet that contains HEX which I sent above. Do you have any idea how to make it work?

Attached Files Thumbnail(s)

Find
Reply
admin Offline
Administrator
Posts: 7758
Threads: 42
Joined: Jun 2015
Reputation: 447
#7
22.08.2018, 09:43
You can send raw data like this but it only makes sense if you have a pre-defined array of values you want to set:
Code:
data = string.char(0x41, 0x72, 0x74, 0x2d, 0x4e, 0x65, 0x74, 0x00, 0x00, 0x50,
  0x00, 0x0e, 0x01, 0x00, 0x0e, 0x00, 0x02, 0x00, 0x01, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  0x00, 0x00, 0x00, 0x00, 0x00)
sock = require('socket').udp()
sock:sendto(data, '192.168.1.204', 6454)
sock:close()
