6byte - DPT
#1
Hi gyus,

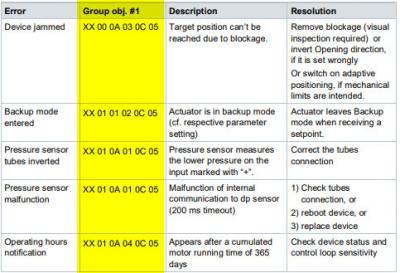

How could I read a 6byte alarm code from the knx bus (Please , see attached )

Attached Files Thumbnail(s)

Reply
#2
You can use "14 byte ASCII string" data type. In event script you can check the event.datahex variable contents to determine what kind of alarm it is.
Reply
#3
(16.08.2022, 09:34)admin Wrote: You can use "14 byte ASCII string" data type. In event script you can check the event.datahex variable contents to determine what kind of alarm it is.

Please, Could I just get an example of the first alarm code ?
Reply
#4
Code:
alarm = event.datahex:sub(3, 12)

if alarm == '000A030C05' then
  log('jammed')
elseif alarm == '0101020C05' then
  log('backup')
end
Reply
#5
(16.08.2022, 09:44)admin Wrote:
Code:
alarm = event.datahex:sub(3, 12)

if alarm == '000A030C05' then
  log('jammed')
elseif alarm == '0101020C05' then
  log('backup')
Thanks
